Ascent Modem
Ultra Fast Throughput, Worldwide
5G + 4G/LTE, MIMO Carrier Aggregation Supports high bandwidth C-Band USB-C powered, compact
Ultra Fast Throughput, Worldwide
5G + 4G/LTE, MIMO Carrier Aggregation Supports high bandwidth C-Band USB-C powered, compact
Dual SIM, USB-C for data and power
K4 EdgeOS integration for advanced connection control and bandwidth bonding
5G connectivity with 4G/ LTE fallback for use in dense urban areas or remote rural locations
Standalone connectivity USB 3.2 - compatible with Linux, Mac, Android, and Windows 10/11
4x4 MIMO - External Antennas (SMA) Required

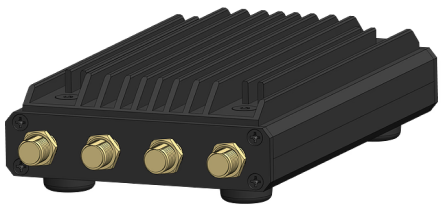

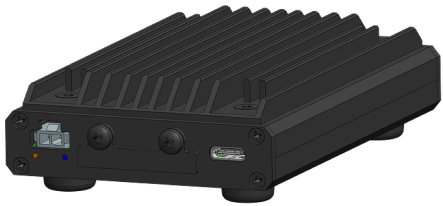

K4Edge Ascent Modem (5G)
| Cellular WAN Interface | 5G SA / NSA, 4G LTE — 4×4 MIMO |
| SIM Slots | 2x nano SIM |
| Throughput | Peak DL/UL Mbps: 5G NSA 3400/550, 5G SA 2400/900, LTE 1600/200 CAT-19/CAT-18 |
| Connectors | 4x SMA-F Cellular, 2-pin Molex External Power, USB Type C |
| Power & Data | USB3.2, backwards compatible with USB2.1 [Opt. Ext. Power: +9 VDC to +24 VDC] |
| Power Consumption | 5W nominal, 8W max* |
| Physical | 113.4mm x 67.3mm x 27 mm / 4.5” x 2.75” x 1.1” – 0.45 lbs* / 200g |
| Environmental | Op temp: -10 to +50 C*; Humidity up to 95%, non-condensing* |
| Certifications | CE, FCC, RoHs |
| US Carrier Certifications | Verizon*, T-Mobile*, ATT* *Certifications pending |
| Warranty | 1 year limited |
